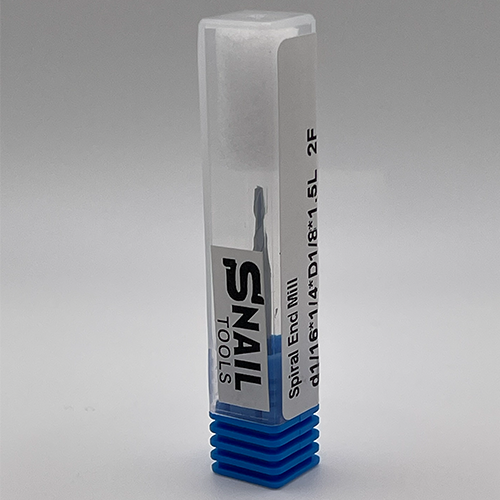

Snail Tools Solid Carbide 2 Flute Spiral End Mill (1/16″ Cut, 1/8″ Shank, 1.5″ Long)

Stabilized Micro-Diameter Upcut Router Bit for Fine Precision and High Rigidity in Wood, Plastics, and Aluminum in Canada.

The Snail Tools Solid Carbide 2 Flute Spiral End Mill is a specialized, micro-diameter tool engineered for extreme precision and detail work. The design features a robust, stabilized 1/8 inch shank supporting the very fine 1/16 inch cutting diameter, which drastically minimizes vibration and deflection, ensuring precise, chatter-free cuts in shallow passes. The standard upcut spiral geometry efficiently pulls micro-chips upward and out of the cut zone, ensuring cooling—ideal when routing intricate details in materials such as wood, plastics, PCB materials, and thin aluminum. Constructed from Solid Carbide, this tool is essential for high-quality CNC routing and micro-milling applications across Ontario and the GTA.

Key Features & Micro-Precision Benefits

• Flutes: 2 Flutes (Double Flute) – Provides an optimal balance of cutting strength, chip evacuation, and good surface finish, suitable for fine detail slotting and profiling.

• Stabilized Shank: Features a robust 1/8 inch Shank Diameter (d) supporting the micro 1/16 inch Cut Diameter (D), maximizing rigidity for highly precise routing and minimizing runout.

• Spiral Type: Upcut (Chip Push Up) – Ensures efficient micro-chip removal and cooling, providing a clean bottom surface finish.

• Length of Cut: The 1/4 inch Length of Cut (B) is ideal for cutting thin to medium-thickness materials in high detail.

• Material: Solid Carbide (WC) – Provides the necessary edge sharpness, hardness, and wear resistance required for working with small features.

Technical Specifications

Ready to elevate your routing precision? Invest in the robust stability and superior chip management of Snail Tools today.
