Sale!
Categories: CNC Tools, Tool Holders

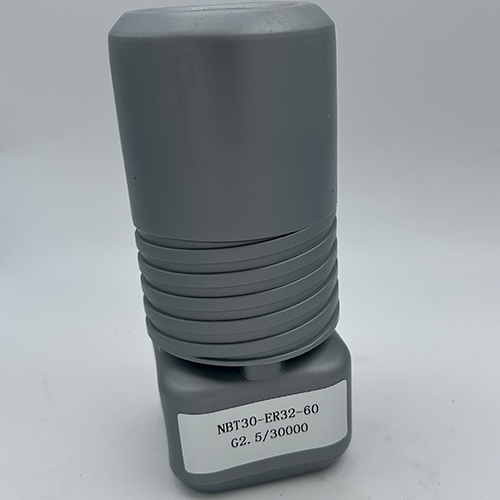

NBT30-ER32-60 HIGH-PRECISION CNC TOOL HOLDER – 60MM GAGE LENGTH – 30,000 RPM BALANCED
Original price was: $120.00.$85.00Current price is: $85.00.
Maximize the power and precision of your tooling with the Snail Tools NBT30-ER32 Tool Holder. This next-generation BT taper system is specifically engineered for heavy-duty machining and demanding applications requiring both superior stability and minimal runout.
| Specification | Detail (Metric – mm) | Detail (Imperial – in/lbs) |
| Item | CNC Tool Holder -T-HC-009 | CNC Tool Holder -T-HC-009 |
| Brand Name | Snail Tools | Snail Tools |
| System of Measurement | Metric – BT (NBT) | Imperial |
| Taper | NBT30 | NBT30 |
| Collet Series | ER-32 | ER-32 |
| [GL] Gage Length | 60.0 mm | 2.36 in |
| [ØBD] Body Diameter | 50.0 mm (Assumed) | 1.97 in (Assumed) |
| Concentricity (Runout) | 0.003 mm | < 0.00012 in |
| Balanced to RPM | 30,000 | 30,000 |
| Retention Knob Thread | M10x1.5 (Assumed) | M10x1.5 (Assumed) |
| Through Tool Coolant | Yes (Assumed) | Yes (Assumed) |
| Weight | 0.55 kg (Approx.) | 1.2 lbs (Approx.) |
| Country of Origin | China | China |
🚀 Superior Rigidity for High-Performance Machining ⚡
Maximize the power and precision of your tooling with the Snail Tools NBT30-ER32 Tool Holder. This next-generation BT taper system is specifically engineered for heavy-duty machining and demanding applications requiring both superior stability and minimal runout.
Balanced to a stellar 30,000 RPM, this holder guarantees minimal runout (0.003 mm), ensuring sharp edges and dramatically extended tool life. The robust ER32 Collet Series compatibility (max capacity ) is perfect for securely locking large-shank milling and routing tools, and the 60mm Gage Length offers a rigid, compact design close to the spindle face.
The NBT30 taper provides secure, reliable seating, making this tool holder an essential upgrade for professional CNC milling centers.
| Specification | Detail (Metric – mm) | Detail (Imperial – in/lbs) |
| Item | CNC Tool Holder -T-HC-009 | CNC Tool Holder -T-HC-009 |
| Brand Name | Snail Tools | Snail Tools |
| System of Measurement | Metric – BT (NBT) | Imperial |
| Taper | NBT30 | NBT30 |
| Collet Series | ER-32 | ER-32 |
| [GL] Gage Length | 60.0 mm | 2.36 in |
| [ØBD] Body Diameter | 50.0 mm (Assumed) | 1.97 in (Assumed) |
| Concentricity (Runout) | 0.003 mm | < 0.00012 in |
| Balanced to RPM | 30,000 | 30,000 |
| Retention Knob Thread | M10x1.5 (Assumed) | M10x1.5 (Assumed) |
| Through Tool Coolant | Yes (Assumed) | Yes (Assumed) |
| Weight | 0.55 kg (Approx.) | 1.2 lbs (Approx.) |
| Country of Origin | China | China |
There are no reviews yet.
