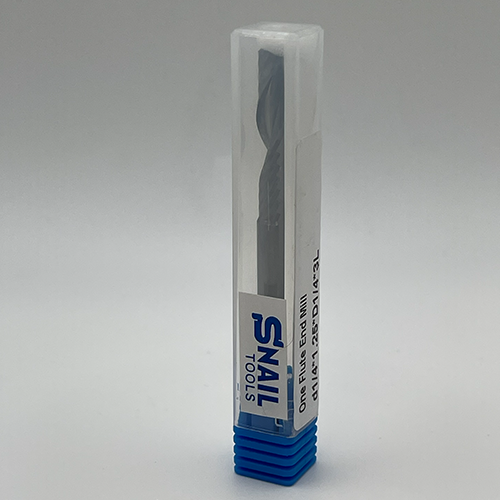

Snail Tools Solid Carbide Single Flute End Mill (1/4″ Dia, 1.25″ Cut)
Original price was: $35.00.$25.00Current price is: $25.00.
Key Features & High-Speed Performance
-
Design: 1 Flute (Single Flute) – Optimized for extremely high feed rates and chip load, ensuring rapid, efficient evacuation of soft, stringy chips. This minimizes heat and prevents material buildup.
-
Material: Solid Carbide (WC) – Provides the necessary rigidity and sharpness to maintain tight tolerances and a smooth finish, even during aggressive high-speed machining.1
-
Dimensions: Features matching 1/4 inch Cut Diameter (D) and 1/4 inch Shank Diameter (d). The 1.25 inch Length of Cut (B) provides extended reach for deeper profiling.
-
Application: Ideal for high-speed machining (HSM) of aluminum (to prevent clogging), engraving plastics, and rapid cutting of wood/composite panels.
Technical Specifications
| Detail | Measurement (Imperial) | Measurement (Metric Approx.) |
| Flutes | 1 | Single Flute |
| Shank Diameter (d) | 1/4 inch | 6.35 mm |
| Cut Diameter (D) | 1/4 inch | 6.35 mm |
| Length of Cut (B) | 1.25 inches | 31.75 mm |
| Overall Length (L) | 3 inches | 76.2 mm |
| Material Grade | Solid Carbide | WC |
| Code | (Please provide a product code if available, e.g., 142) | – |
High-Speed Single Flute Cutter (1/4 Inch) for Aluminum, Plastics, and Composites in Canada.
The Snail Tools Single Flute End Mill is a highly specialized tool engineered for maximum chip evacuation and high feed rates, particularly in soft, non-ferrous materials. The large flute valley prevents chip re-welding and heat buildup, which is crucial when machining materials like aluminum, plastics (acrylic, PVC), wood composites, and soft alloys. Constructed from Solid Carbide for superior rigidity and wear resistance, this cutter provides exceptional performance for high-speed CNC routing and milling applications across Ontario and the GTA.
Key Features & High-Speed Performance
-
Design: 1 Flute (Single Flute) – Optimized for extremely high feed rates and chip load, ensuring rapid, efficient evacuation of soft, stringy chips. This minimizes heat and prevents material buildup.
-
Material: Solid Carbide (WC) – Provides the necessary rigidity and sharpness to maintain tight tolerances and a smooth finish, even during aggressive high-speed machining.1
-
Dimensions: Features matching 1/4 inch Cut Diameter (D) and 1/4 inch Shank Diameter (d). The 1.25 inch Length of Cut (B) provides extended reach for deeper profiling.
-
Application: Ideal for high-speed machining (HSM) of aluminum (to prevent clogging), engraving plastics, and rapid cutting of wood/composite panels.
Technical Specifications
| Detail | Measurement (Imperial) | Measurement (Metric Approx.) |
| Flutes | 1 | Single Flute |
| Shank Diameter (d) | 1/4 inch | 6.35 mm |
| Cut Diameter (D) | 1/4 inch | 6.35 mm |
| Length of Cut (B) | 1.25 inches | 31.75 mm |
| Overall Length (L) | 3 inches | 76.2 mm |
| Material Grade | Solid Carbide | WC |
| Code | (Please provide a product code if available, e.g., 142) | – |
Trust Snail Tools to deliver the chip-free performance and speed required for machining soft materials.
