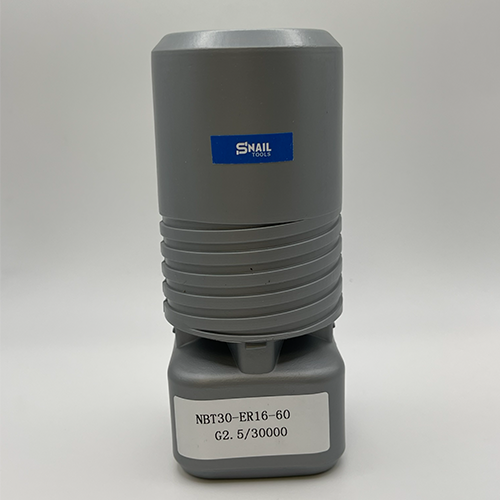

NBT30-ER16-60 HIGH-PRECISION CNC TOOL HOLDER – 60MM GAGE LENGTH – 30,000 RPM BALANCED
Original price was: $120.00.$85.00Current price is: $85.00.
Maximize the accuracy and lifespan of your smallest cutters with the Snail Tools NBT30-ER16 Tool Holder. This next-generation BT taper system is specifically engineered for high-speed machining and applications demanding exceptional precision and balance.
| Specification | Detail (Metric – mm) | Detail (Imperial – in/lbs) |
| Item | CNC Tool Holder -T-HC-007 | CNC Tool Holder -T-HC-007 |
| Brand Name | Snail Tools | Snail Tools |
| System of Measurement | Metric – BT (NBT) | Imperial |
| Taper | NBT30 | NBT30 |
| Collet Series | ER-16 | ER-16 |
| [GL] Gage Length | 60.0 mm | 2.36 in |
| [ØBD] Body Diameter | 28.0 mm (Assumed) | 1.10 in (Assumed) |
| Concentricity (Runout) | 0.003 mm | < 0.00012 in |
| Balanced to RPM | 30,000 | 30,000 |
| Retention Knob Thread | M10x1.5 (Assumed) | M10x1.5 (Assumed) |
| Through Tool Coolant | Yes (Assumed) | Yes (Assumed) |
| Weight | 0.4 kg (Approx.) | 0.9 lbs (Approx.) |
| Country of Origin | China | China |
🚀 Ultra-Precision for Micro-Tooling ⚡
Maximize the accuracy and lifespan of your smallest cutters with the Snail Tools NBT30-ER16 Tool Holder. This next-generation BT taper system is specifically engineered for high-speed machining and applications demanding exceptional precision and balance.
Balanced to a stellar 30,000 RPM, this holder guarantees minimal runout (0.003 mm), ensuring your delicate tools perform flawlessly. The specialized ER16 Collet Series is perfect for precision routing and engraving (max capacity ), while the 60mm Gage Length offers a rigid, compact design close to the spindle.
The NBT30 taper provides secure, reliable seating, making this tool holder an essential upgrade for professional CNC milling centers focusing on detailed work.
| Specification | Detail (Metric – mm) | Detail (Imperial – in/lbs) |
| Item | CNC Tool Holder -T-HC-007 | CNC Tool Holder -T-HC-007 |
| Brand Name | Snail Tools | Snail Tools |
| System of Measurement | Metric – BT (NBT) | Imperial |
| Taper | NBT30 | NBT30 |
| Collet Series | ER-16 | ER-16 |
| [GL] Gage Length | 60.0 mm | 2.36 in |
| [ØBD] Body Diameter | 28.0 mm (Assumed) | 1.10 in (Assumed) |
| Concentricity (Runout) | 0.003 mm | < 0.00012 in |
| Balanced to RPM | 30,000 | 30,000 |
| Retention Knob Thread | M10x1.5 (Assumed) | M10x1.5 (Assumed) |
| Through Tool Coolant | Yes (Assumed) | Yes (Assumed) |
| Weight | 0.4 kg (Approx.) | 0.9 lbs (Approx.) |
| Country of Origin | China | China |
