High-Flow Copper Laser Welding Nozzle (CS20 / M16 Thread / Large Aperture)

Snail Tools | CS20 Series M16 Laser Welder Nozzle for High Gas Coverage

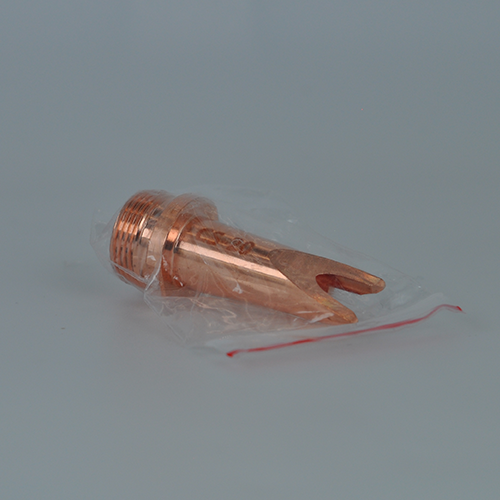

The Snail Tools CS20 Laser Welding Nozzle is a robust and highly efficient consumable designed for general-purpose and high-speed flat seam welding across North American fabrication sectors. Designed for laser welding heads that accept the standard M16 thread, this nozzle features a large internal aperture, indicated by the ’20’ in the code (likely $2.0\text{mm}$ or larger), ensuring maximum shielding gas flow over the weld pool.

The CS model geometry is optimized for straight-line welding and general applications, providing a stable gas curtain to protect the molten metal from atmospheric contamination during high-speed, no-wire, or light-wire applications. The use of high-grade Copper ensures rapid heat dissipation, maximizing the duty cycle and operational life of the nozzle.

Key Features for North American Manufacturing Success:

• Maximum Gas Shielding: The large aperture size provides a high-volume, stable inert gas curtain, essential for achieving clean, non-oxidized welds, particularly in high-speed linear seam applications.

• General-Purpose CS Design: Optimized for flat-seam welding and general applications where maximum coverage is prioritized over complex angle access.

• M16 Thread & Copper Material: Guarantees a secure, repeatable fit and provides superior heat dissipation, critical for high-duty, continuous welding operations.

• High Efficiency: The design promotes high concentricity, ensuring the laser beam and gas shield are perfectly aligned, which minimizes turbulence and weld defects.
