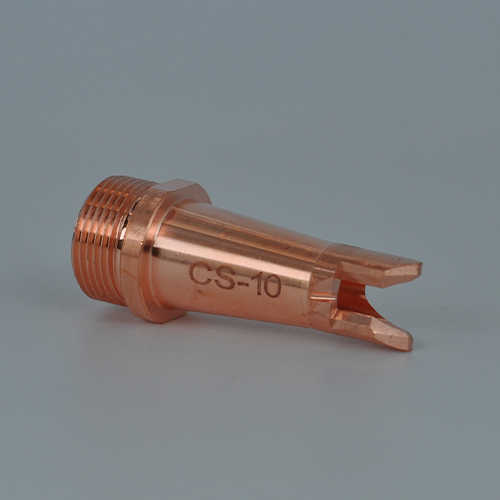

High-Precision Copper Laser Welding Nozzle (CS10 / M16 Thread)

Snail Tools | CS10 Series M16 Laser Welder Nozzle for Thin-Gauge Welding

The Snail Tools CS10 Laser Welding Nozzle is a specialized consumable engineered for North American fabricators working with thin-gauge materials and requiring minimal weld bead size. This nozzle is specifically designed for superior guidance of $0.8\text{mm}$ and $1.0\text{mm}$ filler wires, ensuring stability and accuracy critical for creating smooth, aesthetically clean, and structurally sound joints with low heat input.

The CS model geometry is optimized for Outer Angle welding and excellent performance in flat and straight-seam applications. The high-grade Copper construction ensures rapid and effective heat dissipation, maintaining the integrity of the nozzle tip and minimizing spatter accumulation. The assumed $44\text{mm}$ length provides the ideal standoff distance for consistent beam focus and effective gas shielding.

Key Features for North American Manufacturing Success:

• Fine-Wire Specialization: Optimized for highly stable feeding of the smallest filler wires ($0.8\text{mm}$ and $1.0\text{mm}$), minimizing wire buckling and enhancing precision for thin material work.

• Outer Angle/Flat Seam Design: The CS geometry provides superior control for exterior corner welds and general flat welding, maximizing gas coverage and joint access.

• High Concentricity: Precision manufactured to ensure perfect alignment between the laser beam, shielding gas, and filler wire, leading to consistent, high-quality welds.

• M16 Thread & Copper Material: Guarantees a secure fit into the welding head and provides superior thermal performance, extending the nozzle’s lifespan under continuous operation.
