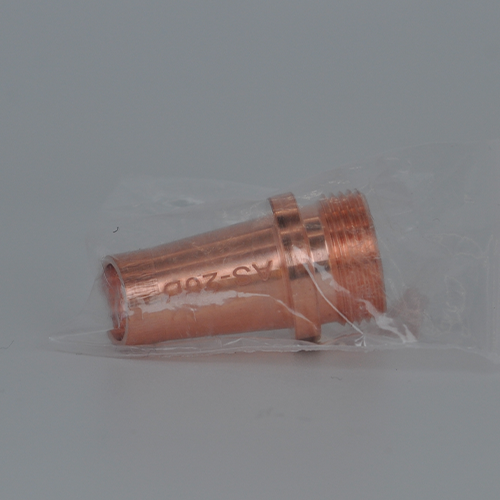

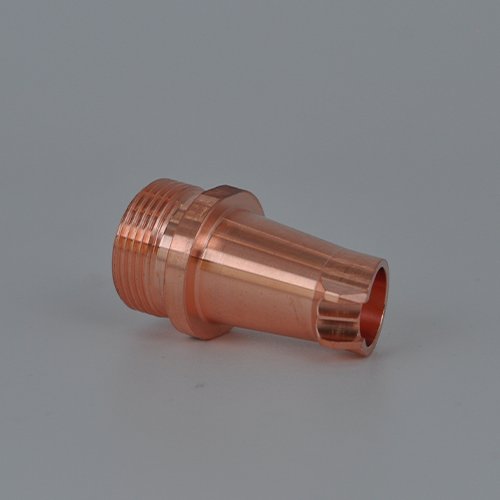

Snail Tools High-Capacity Copper Laser Welding Nozzle (AS20D / M16 Thread)
Original price was: $20.00.$15.00Current price is: $15.00.
Key Features for North American Manufacturing Success:
-
Dual Wire Feed Capability: The ‘D’ (Double) design is essential for specialized welding heads, maximizing deposition rates and providing material flexibility in a single pass.
-
Versatile Wire Guiding: The aperture is often designed to fit , , and wires when run in a double-feed configuration, accommodating various job requirements.
-
Weld Clean Application: The nozzle’s design and copper material properties are highly suitable for use during the integrated Weld Clean (pre- and post-weld surface treatment) function of advanced laser heads.
- M16 Thread & 32mm Length: Standard dimensions ensure a secure, high-concentricity fit across compatible M16 laser welding systems.
- High-Flow Gas Shielding: The large internal diameter ensures a robust curtain of inert gas to protect the large weld pool from atmospheric contaminants.
| Feature | Specification / Value | Technical Note |
| Snail Tools Code | AS20D (Internal Reference) | Used for precise inventory tracking. |
| Product Type | Laser Welding Nozzle | Specialized for Dual Wire Feed and Weld Cleaning. |
| Attachment Thread | M16 | Standard metric thread for compatible welding heads. |
| Length/Height | 32mm | Specific standoff distance for dual-feed stability. |
| Material | Copper | Ensures high heat dissipation and electrical conductivity. |
| Wire Guiding/Aperture | 2.0mm | Large bore accommodating Dual Wire Feed for 0.8\mm to 1.2\mm fine wires. |
| Key Application | Dual Wire Welding, Weld Cleaning, High Deposition Rates | Essential for heavy-duty and gap-bridging applications. |
Snail Tools | AS20D Series M16 Laser Welder Nozzle for Dual Wire and High-Flow
The Snail Tools AS20D Laser Welding Nozzle is a crucial consumable engineered for North American automated and specialized fabrication that utilizes Dual Wire Feeding technology. This nozzle is characterized by the ‘D’ designation, indicating a specialized internal channel design to manage two filler wires simultaneously, a process critical for maximizing deposition rates and bridging wider gaps.
The robust AS model geometry, combined with the length, provides the necessary stability and optimal distance for consistent dual-wire operation. The internal bore is designed to accommodate dual wire configurations for common fine wire sizes, and the larger flow space ensures a powerful, stable gas shield over the broader weld pool created by the double feed. The high-grade Copper construction guarantees superior heat dissipation, reducing thermal distortion and spatter adhesion, making it highly effective for integrated Weld Cleaning applications.
Key Features for North American Manufacturing Success:
-
Dual Wire Feed Capability: The ‘D’ (Double) design is essential for specialized welding heads, maximizing deposition rates and providing material flexibility in a single pass.
-
Versatile Wire Guiding: The aperture is often designed to fit , , and wires when run in a double-feed configuration, accommodating various job requirements.
-
Weld Clean Application: The nozzle’s design and copper material properties are highly suitable for use during the integrated Weld Clean (pre- and post-weld surface treatment) function of advanced laser heads.
- M16 Thread & 32mm Length: Standard dimensions ensure a secure, high-concentricity fit across compatible M16 laser welding systems.
- High-Flow Gas Shielding: The large internal diameter ensures a robust curtain of inert gas to protect the large weld pool from atmospheric contaminants.
| Feature | Specification / Value | Technical Note |
| Snail Tools Code | AS20D (Internal Reference) | Used for precise inventory tracking. |
| Product Type | Laser Welding Nozzle | Specialized for Dual Wire Feed and Weld Cleaning. |
| Attachment Thread | M16 | Standard metric thread for compatible welding heads. |
| Length/Height | 32mm | Specific standoff distance for dual-feed stability. |
| Material | Copper | Ensures high heat dissipation and electrical conductivity. |
| Wire Guiding/Aperture | 2.0mm | Large bore accommodating Dual Wire Feed for 0.8\mm to 1.2\mm fine wires. |
| Key Application | Dual Wire Welding, Weld Cleaning, High Deposition Rates | Essential for heavy-duty and gap-bridging applications. |
