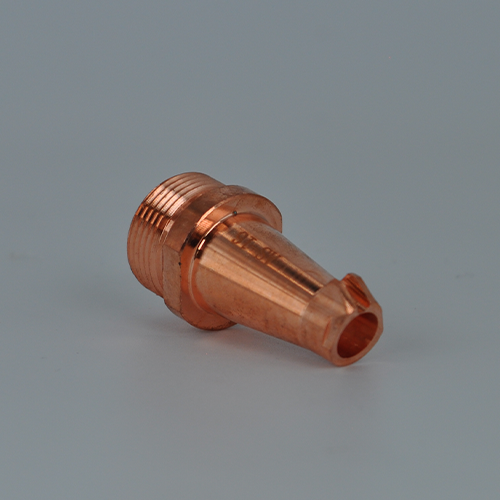

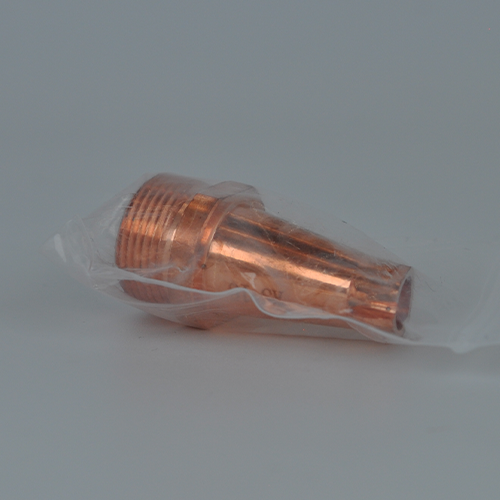

High-Capacity Copper Laser Welding Nozzle (AS16 / M16 Thread / 35mm)
Original price was: $20.00.$15.00Current price is: $15.00.
Key Features for North American Manufacturing Success:
-
Single Wire Feed: Dedicated to stable and consistent feeding of a single, large-diameter filler wire.
-
High-Capacity Wire Guiding: Precision bored to for stable delivery of thicker filler wire, ideal for heavy-duty welding and filling larger joint gaps.
-
Structural Application Focus: Optimized for high-penetration, strong welds in structural and medium-to-thick gauge materials.
-
M16 Thread & 35mm Length: Standard dimensions ensure a secure, high-concentricity fit across compatible M16 laser welding systems.
-
Superior Thermal Management: Constructed from Copper to maximize heat dissipation and reduce spatter adhesion, ensuring a longer tip lifespan.
| Feature | Specification / Value | Technical Note |
| Snail Tools Code | AS16 (Internal Reference) | Used for precise inventory tracking. |
| Product Type | Laser Welding Nozzle | Specialized for Single Wire Feed and High Penetration. |
| Attachment Thread | M16 | Standard metric thread for compatible welding heads. |
| Length/Height | 35mm | Standard standoff distance for structural welding. |
| Material | Copper | Ensures high heat dissipation and electrical conductivity. |
| Wire Guiding Diameter | 1.6\mm | Optimized for stable feeding of the thickest common single filler wire. |
| Key Application | Structural Welding, High Penetration, Single Wire Feed | Essential for medium-to-heavy gauge steel applications. |
Snail Tools | AS16 Series M16 Laser Welder Nozzle for Structural Single Wire Welding
The Snail Tools AS16 Laser Welding Nozzle is a crucial, robust consumable engineered for structural and heavy-duty fabrication utilizing standard Single Wire Feeding technology. This nozzle is characterized by the AS model geometry, which is optimized for general flat seam welding and is designed to provide stable guidance for high-capacity wire feeding.
The nozzle is specifically designed for reliable and consistent feeding of the () filler wire, ensuring enhanced strength and deposition for medium-to-heavy gauge materials. The slightly shorter length provides the ideal standoff distance for stable arc conditions and effective gas shielding in structural applications. The high-grade Copper construction guarantees superior heat dissipation, which is critical when performing high-duty cycle welding with thicker wire.
Key Features for North American Manufacturing Success:
-
Single Wire Feed: Dedicated to stable and consistent feeding of a single, large-diameter filler wire.
-
High-Capacity Wire Guiding: Precision bored to for stable delivery of thicker filler wire, ideal for heavy-duty welding and filling larger joint gaps.
-
Structural Application Focus: Optimized for high-penetration, strong welds in structural and medium-to-thick gauge materials.
-
M16 Thread & 35mm Length: Standard dimensions ensure a secure, high-concentricity fit across compatible M16 laser welding systems.
-
Superior Thermal Management: Constructed from Copper to maximize heat dissipation and reduce spatter adhesion, ensuring a longer tip lifespan.
| Feature | Specification / Value | Technical Note |
| Snail Tools Code | AS16 (Internal Reference) | Used for precise inventory tracking. |
| Product Type | Laser Welding Nozzle | Specialized for Single Wire Feed and High Penetration. |
| Attachment Thread | M16 | Standard metric thread for compatible welding heads. |
| Length/Height | 35mm | Standard standoff distance for structural welding. |
| Material | Copper | Ensures high heat dissipation and electrical conductivity. |
| Wire Guiding Diameter | 1.6\mm | Optimized for stable feeding of the thickest common single filler wire. |
| Key Application | Structural Welding, High Penetration, Single Wire Feed | Essential for medium-to-heavy gauge steel applications. |
