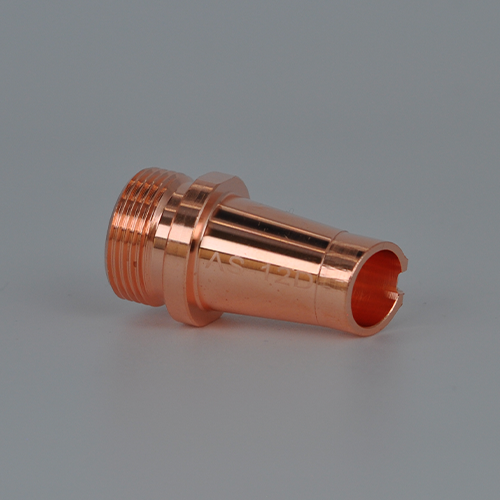

Precision Copper Laser Welding Nozzle (AS12D / M16 Thread / 32mm)

Snail Tools | AS12D Series M16 Laser Welder Nozzle for Precision Dual Wire Welding

The Snail Tools AS12D Laser Welding Nozzle is a precision consumable engineered for automated and specialized fabrication that utilizes Dual Wire Feeding technology. This nozzle is characterized by the ‘D’ designation, indicating a specialized internal channel design to manage two finer filler wires simultaneously, a process critical for maximizing deposition rates and maintaining low heat input on thinner materials.

The robust AS model geometry, combined with the $32\text{mm}$ length, provides the necessary stability and optimal distance for consistent dual-wire operation. The nozzle is specifically optimized for a $1.2\text{mm}$ total wire capacity (e.g., two $0.6\text{mm}$ or $0.8\text{mm}$ wires), providing enhanced speed and gap-bridging capabilities common in the automotive and light manufacturing sectors. The high-grade Copper construction guarantees superior heat dissipation, minimizing thermal distortion and spatter adhesion, making it effective for integrated Weld Cleaning applications.

Key Features for North American Manufacturing Success:

• Dual Wire Feed Capability: The ‘D’ (Double) design is essential for specialized welding heads, significantly boosting deposition rates in fine-wire applications.

• Precision Wire Focus: Optimized to guide $1.2\text{mm}$ total wire capacity, allowing for the use of two small-diameter wires for high speed and minimal heat input.

• Weld Clean Application: The nozzle’s design and copper material properties are highly suitable for use during the integrated Weld Cleaning function of advanced laser heads.

• M16 Thread & 32mm Length: Standard dimensions ensure a secure, high-concentricity fit across compatible M16 laser welding systems.

• Low Heat Input: The use of finer dual wires allows for high travel speeds while minimizing the heat-affected zone (HAZ).
