Heavy-Duty Vacuum Brazed Diamond Grinding Disc – Gerima TGD-H (Heavy-Disc)

The Gerima TGD-H (Heavy-Disc) Vacuum Brazed Diamond Grinding Disc is engineered for the toughest industrial applications where speed and material removal rates are the priority. Unlike flexible discs, the TGD-H features a solid, rigid steel carrier body, making it the ideal choice for heavy-duty grinding and aggressive surface processing.

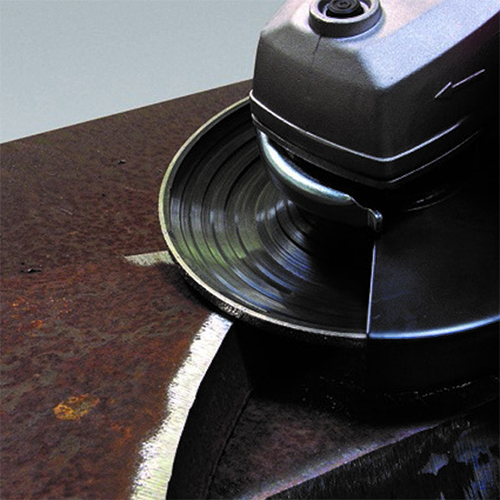

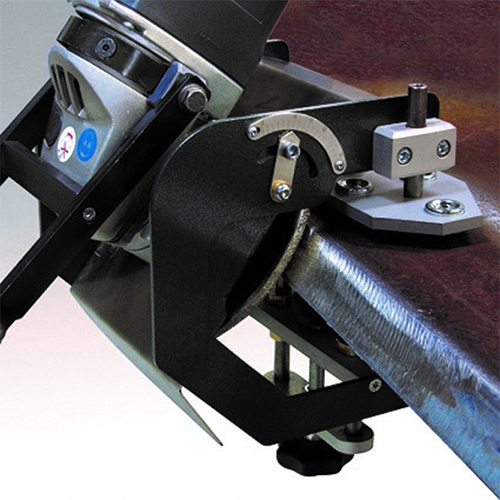

Designed to withstand high contact pressure, this disc excels at grinding down weld seams, chamfering hard edges, and processing robust materials like steel and stainless steel. Thanks to the advanced vacuum-brazed diamond technology, it maintains its cutting ability far longer than conventional abrasives, ensuring consistent performance from the first spark to the last.

Key Features & Benefits:

• Maximum Stock Removal: Optimized for aggressive grinding and rapid material removal.

• Rigid Construction: The solid steel core allows for higher contact pressure without deformation, providing stability for heavy work.

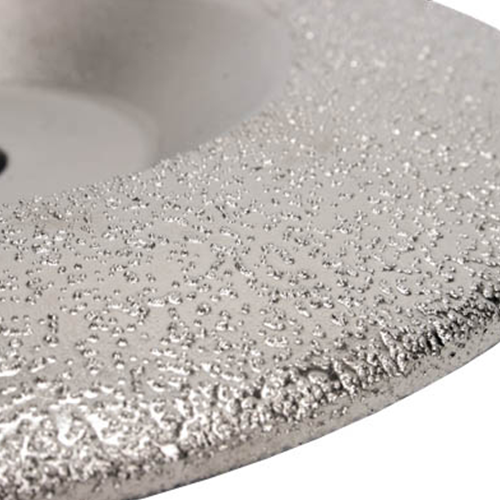

• Extreme Durability: Vacuum-brazed diamonds resist shedding, offering a lifespan many times longer than standard flap discs or grinding wheels.

• Safety: The steel body eliminates the risk of disc breakage common in bonded abrasives, ensuring a safer working environment.

• Constant Geometry: Does not shrink in diameter during use, providing a constant peripheral speed and finish quality.

Technical Specifications:

• Available Diameters: 125mm and 178mm

• Mounting Diameter: 22mm

• Grain Size: G35 (Coarse grain for fast removal)

When you need pure power and stability for grinding welds or shaping hard metals, the Gerima TGD-H is the heavy-duty tool for the job.
