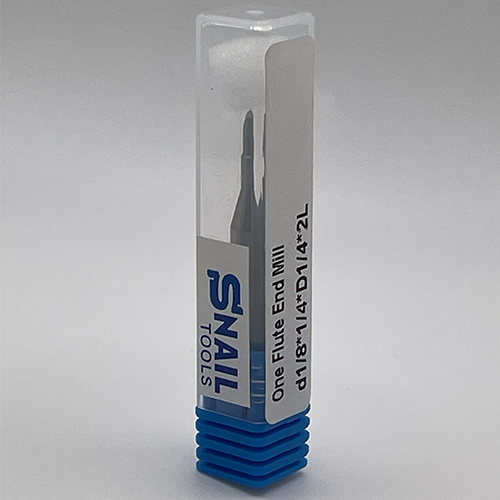

Snail Tools Solid Carbide Single Flute End Mill (1/8″ Cut, 1/4″ Shank)

Stabilized Single Flute Cutter (1/8 Inch) for High-Speed Precision in Aluminum and Plastics in Canada.

The Snail Tools Single Flute End Mill is a specialized precision tool engineered for maximum rigidity and superior chip evacuation when performing shallow, intricate cuts in soft, non-ferrous materials. The design features a robust 1/4 inch shank supporting a fine 1/8 inch cutting diameter, which drastically minimizes vibration and deflection. This stability is crucial for high-speed machining (HSM) of materials like aluminum, plastics (HDPE, Delrin), and thin composites. The single flute ensures optimal chip removal, preventing re-welding and heat buildup in high-speed CNC routing applications across Ontario and the GTA.

Key Features & Precision High-Speed Performance

• Stabilized Shank: Features a robust 1/4 inch Shank Diameter (d) supporting the fine 1/8 inch Cut Diameter (D), maximizing rigidity and reducing tool deflection for high-precision work.

• Design: 1 Flute (Single Flute) – Optimized for maximum chip load and high feed rates, ensuring rapid, efficient evacuation of soft, stringy chips without clogging.

• Material: Solid Carbide (WC) – Provides the necessary extreme rigidity and sharpness to maintain tight tolerances and a smooth finish, even during aggressive high-speed machining.

• Application: Ideal for detailed profiling, shallow engraving, and high-speed cutting of non-ferrous metals and plastics where cutter stability and chip management are critical.

Technical Specifications

Trust Snail Tools to deliver the superior precision and rigidity required for detailed high-speed machining.
