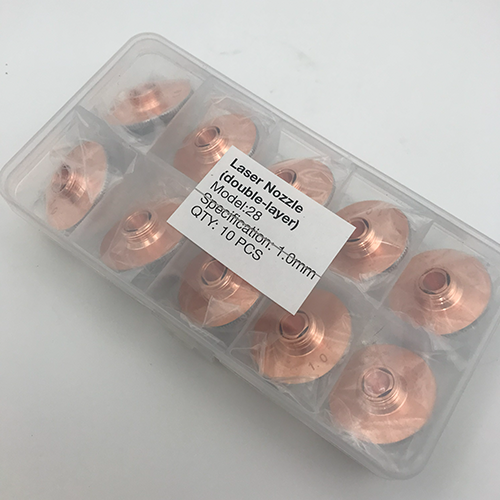

Snail Tools Ultimate-Precision Double Layer Laser Nozzle (M28 / 1.0mm)

Snail Tools | MD104 Series 1.0mm Double Layer Nozzle for Micro-Cutting

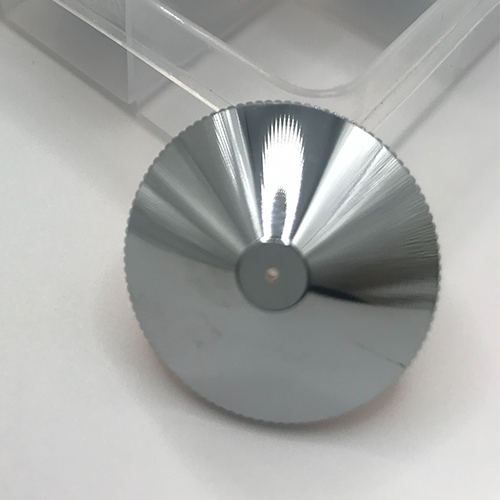

The Snail Tools MD104 Double Layer Laser Nozzle is the premium choice for North American precision job shops engaged in micro-fabrication and high-value, complex components. The ultra-fine $1.0\text{mm}$ aperture provides unparalleled focus of the assist gas stream, crucial for achieving the smallest possible kerf width and ensuring a minimal heat-affected zone (HAZ) on the most delicate thin-gauge materials.

The essential Double Layer construction ensures operational stability during high-pressure cutting. This design accurately controls the highly focused gas stream (inner layer) while the outer layer provides superior thermal and spatter protection to the costly laser head optics, guaranteeing cut consistency and long equipment life.

Key Features for North American Manufacturing Success:

• Maximum Kerf Reduction: The $1.0\text{mm}$ aperture is engineered for absolute minimum material removal, allowing for the most intricate and dense part nesting possible, maximizing material utilization.

• Optimized for Thin Gauge: Ideal for cutting delicate materials where thermal input must be minimized. The precise gas focus ensures rapid melt expulsion and a clean, dross-free edge.

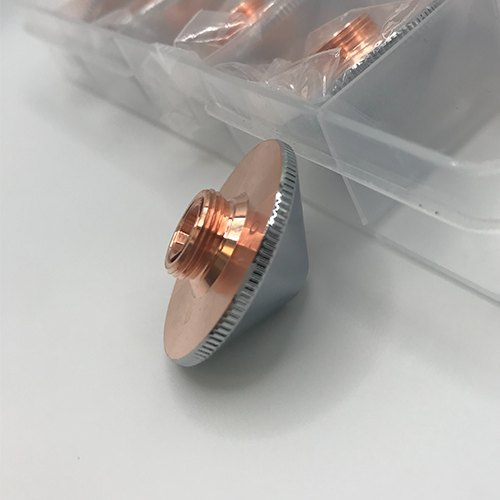

• Reliable M28 Fit: Features the standard $M28$ thread connection for a stable, secure, and repeatable fit on compatible fiber laser heads, which is critical for maintaining the tight tolerances required by the $1.0\text{mm}$ aperture.

• Superior Durability: Made from high-grade copper with an anti-spatter coating, this nozzle offers excellent resistance to wear, ensuring long operational life and minimizing downtime for US and Canadian businesses.
