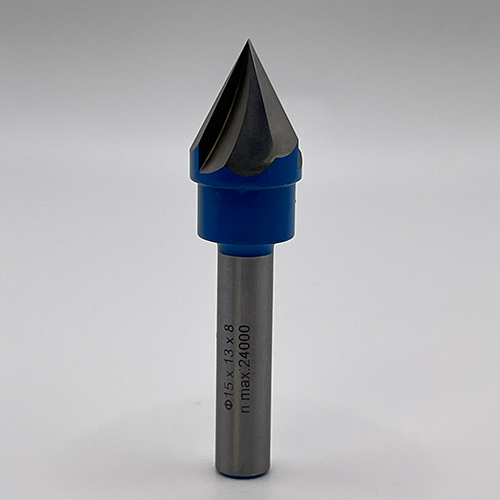

Snail Tools Professional Sign Making Bit (9/16″ Dia, 60° Angle)

The Precision V-Groove Bit for CNC Carving and Sign Fabrication Across Canada.

The Snail Tools Professional Sign Making Bit is the tool of choice for achieving crisp, clean lines and smooth finishes in workshops throughout Ontario and the GTA. This carbide-tipped V-groove bit is specifically engineered for professional sign making, detailed grooving, and decorative carving on wood, MDF, and composite panels.

High-Precision Technical Specifications:

• Diameter (D): 9/16 inch (14.29 mm)

• Angle (a°): 60° – The ideal angle for standard V-grooves, sharp lettering, and chamfering.

• Cutting Height (B): 1/2 inch (12.7 mm)

• Shank (d): 1/4 inch (6.35 mm) – Standard shank size compatible with most handheld routers and CNC machines.

• Overall Length (L): 2-1/4 inches (57.15 mm)

• B1 (Depth/Additional Cut): 7/16 inch (11.11 mm)

• Flutes: 3 – The three-flute design ensures superior chip evacuation, reduced heat, and a cleaner final surface finish, even at high feed rates in the Canadian market.

Trust Snail Tools to provide the sharp, precise cutting edge required to elevate the quality of your detailed woodworking projects.
