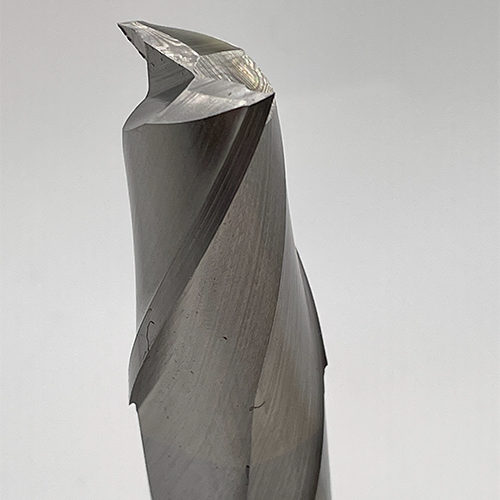

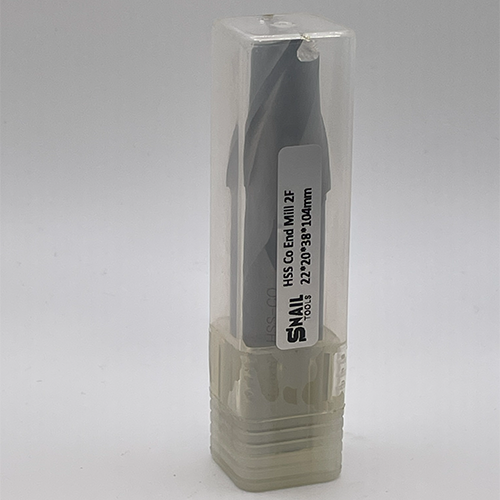

Snail Tools HSS Co Two Flute End Mill (22 x 20 x 38 x 104MM)

Reduced Shank Cobalt End Mill (22mm Dia, 38mm Cut Length) for Extreme Heavy-Duty Machining of Harder Metals in Canada.

The Snail Tools HSS Co Two Flute End Mill (22 x 20 x 38 x 104MM) is a specialized, oversized diameter tool designed to provide a large 22 mm cutting diameter while utilizing a common 20 mm tool holder (reduced shank design). This cutter is built for maximum material removal across a wide range of tough materials, including structural steel, difficult alloys, and high-tensile cast iron. The cobalt infusion ensures superior heat resistance, making it essential for the most demanding industrial applications across Ontario and the GTA.

Key Features & Industrial Machining

• Design: 2 Flutes (Double Flute) – Offers increased tool strength and stability, crucial for heavy slotting and plunging operations in industrial materials where high torque and stability are paramount.

• Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-temperature and heavy-load machining.

• Reduced Shank: Features a massive 22 mm Cut Diameter (D) with a reduced 20 mm Shank Diameter (d). The 38 mm Length of Cut (B) provides substantial depth for industrial material removal. This design is critical for maximizing cutting size in limited tool holders.

• Application: Ideal for production slotting, heavy profiling, and roughing operations, offering maximum strength and heat resistance in challenging ferrous materials.

Technical Specifications

Trust Snail Tools to deliver the maximum cutting capacity, stability, and heat resistance required for superior machining of tough materials in your most demanding industrial projects.
