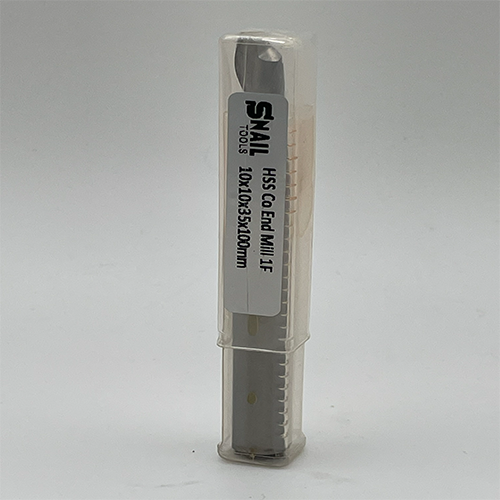

Snail Tools HSS Co Single Flute End Mill (10 x 10 x 35 x 100MM)
Key Features & Optimized Performance
-
Design: 1 Flute (Single Flute) – Provides the largest chip valley, essential for high feed rates and fast evacuation of soft materials, minimizing material sticking and friction.
-
Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-speed machining.
-
Balanced Dimensions: Features a substantial 35 mm Length of Cut (B) for deep slotting and profiling, combined with a stable $10\text{mm}$ shank.
-
Application: Ideal for profiling, slotting, and routing in non-ferrous metals and plastics, delivering an exceptionally clean surface finish and high material removal rates.
Technical Specifications
| Detail | Measurement | Equivalent |
| Flutes | 1 | Single Flute |
| Shank Diameter (d) | 10 mm | 3/8 inch approx. |
| Cut Diameter (D) | 10 mm | 3/8 inch approx. |
| Length of Cut (B) | 35 mm | 1.38 inches approx. |
| Overall Length (L) | 100 mm | 4 inches approx. |
| Material Grade | HSS Co (Cobalt) | |
| Code | (Please provide a product code if available, e.g., 076) |
Precision Cobalt End Mill (10mm Dia, 35mm Cut Length) for High-Speed Machining of Aluminum and Non-Ferrous Metals in Canada.

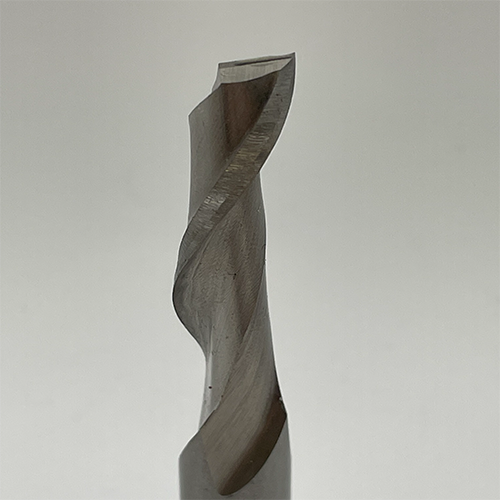

The Snail Tools HSS Co Single Flute End Mill (10 x 10 x 35 x 100MM) is a robust, specialized tool designed for efficient, high-speed material removal, particularly in aluminum, brass, and plastics. The single flute design allows for maximum chip clearance and evacuation, preventing re-cutting and heat buildup. This 10mm cutter provides smooth, professional results in demanding CNC and conventional milling applications across Ontario and the GTA.
Key Features & Optimized Performance
-
Design: 1 Flute (Single Flute) – Provides the largest chip valley, essential for high feed rates and fast evacuation of soft materials, minimizing material sticking and friction.
-
Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-speed machining.
-
Balanced Dimensions: Features a substantial 35 mm Length of Cut (B) for deep slotting and profiling, combined with a stable $10\text{mm}$ shank.
-
Application: Ideal for profiling, slotting, and routing in non-ferrous metals and plastics, delivering an exceptionally clean surface finish and high material removal rates.
Technical Specifications
| Detail | Measurement | Equivalent |
| Flutes | 1 | Single Flute |
| Shank Diameter (d) | 10 mm | 3/8 inch approx. |
| Cut Diameter (D) | 10 mm | 3/8 inch approx. |
| Length of Cut (B) | 35 mm | 1.38 inches approx. |
| Overall Length (L) | 100 mm | 4 inches approx. |
| Material Grade | HSS Co (Cobalt) | |
| Code | (Please provide a product code if available, e.g., 076) |
Trust Snail Tools to deliver the speed, precision, and chip evacuation efficiency required for superior machining of non-ferrous materials in your professional projects.
